Enclosures

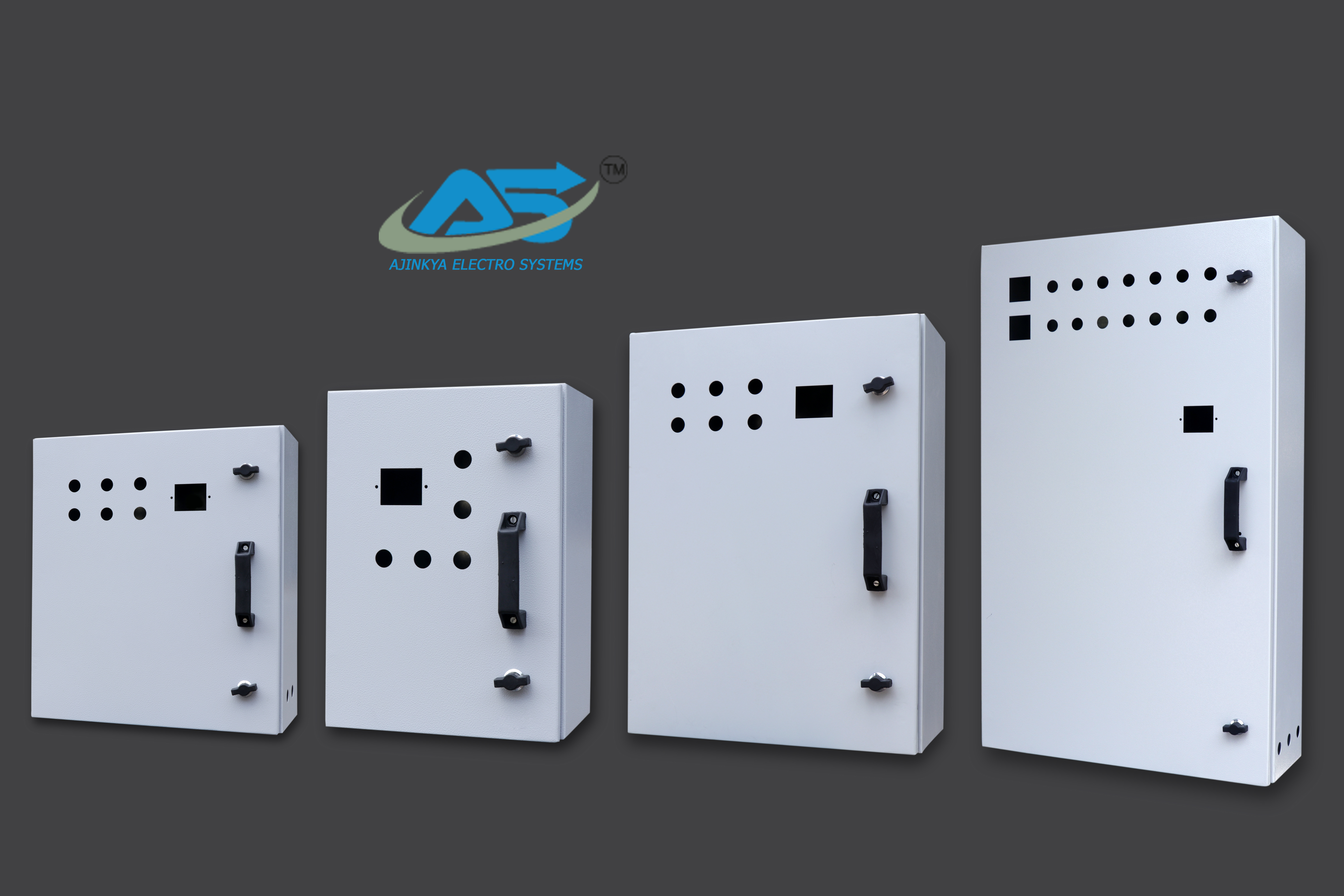

Wall Mounting Enclosure
Efficient and Space-Saving: Wall-Mounting Enclosures These compact and efficient enclosures provide a secure and space-saving housing for your valuable components. Designed for convenience, our wall-mounting enclosures are easy to install, making them ideal for environments with limited space. With their sturdy construction and durable materials, they ensure reliable protection against dust, water, and physical damage.
Technical Specifications:
Welded Body:
Body fully welded with sides, rear, top & bottom in 1.6 / 2mm CRCA sheet.
Gasket:
PU gasket for superior & long lasting ingress protection.
Gland Plate:
At Top / Bottom as per the requirement in 2mm CRCA sheet.
Mounting Provision:
Wall mounting brackets.
Powder Coating:
RAL 7035
Mounting Plate:
Made with 2 / 2.5mm Galvanized sheet.
IP Rating:
Available up to IP65 protection
Door:
Pump, Fan, Blower, Conveyor, Crane and DBody fully welded with sides, rear, top & bottom in 1.6 / 2mm CRCA sheet.amper Control
Floor Standing Enclosure
Secure and Versatile: Electrical Floor-Standing Enclosures Our electrical floor-standing enclosures offer a reliable and adaptable solution. These sturdy and secure enclosures are designed to accommodate a variety of applications, providing a safe and convenient for electrical, electronic components.
Technical Specifications:
Welded Body:
Body fully welded with sides, top & bottom in 1.6 / 2mm CRCA sheet. Non extensible design.
Door:
Single or Double door as per the requirement in 2mm CRCA sheet with 135° opening. Rear door can be also provided.
Gland Plate:
At Top / Bottom as per the requirement in 2mm CRCA sheet.
Mounting Plate:
Made with 2 / 2.5mm Galvanized sheet.
Powder Coating:
RAL 7035
Mounting Provision:
Base or stand.
Lifting Provision:
Eye bolts.
Gasket:
PU gasket for superior & long lasting ingress protection.
IP Rating:
Available up to IP54 protection
Modular Floor Standing Enclosure
Flexible and Scalable: Modular Floor-Standing Enclosures These versatile enclosures offer a flexible and scalable option, allowing you to customize and expand your setup as your requirements change. Designed for adaptability, our modular enclosures feature a modular construction that allows for easy configuration and reconfiguration.
Technical Specifications:
Frame Structure:
Welded with 2.5 / 3mm CRCA sheet. Extensible design.
Door & Covers:
Front or Rear doors as per the requirement in 2mm CRCA sheet with 110° opening. Sides, Top & Bottom are enclosed with covers.
Gland Plate:
At Top / Bottom as per the requirement in 2mm CRCA sheet.
Mounting Plate:
Made with 2 / 2.5mm Galvanized sheet.
Powder Coating:
RAL 7035
Mounting Provision:
Base in a C-channel of 100x50x5mm.
Lifting Provision:
Eye bolts or Lifting brackets
Gasket:
PU gasket for superior & long lasting ingress protection.
IP Rating:
Available up to IP42 protection.

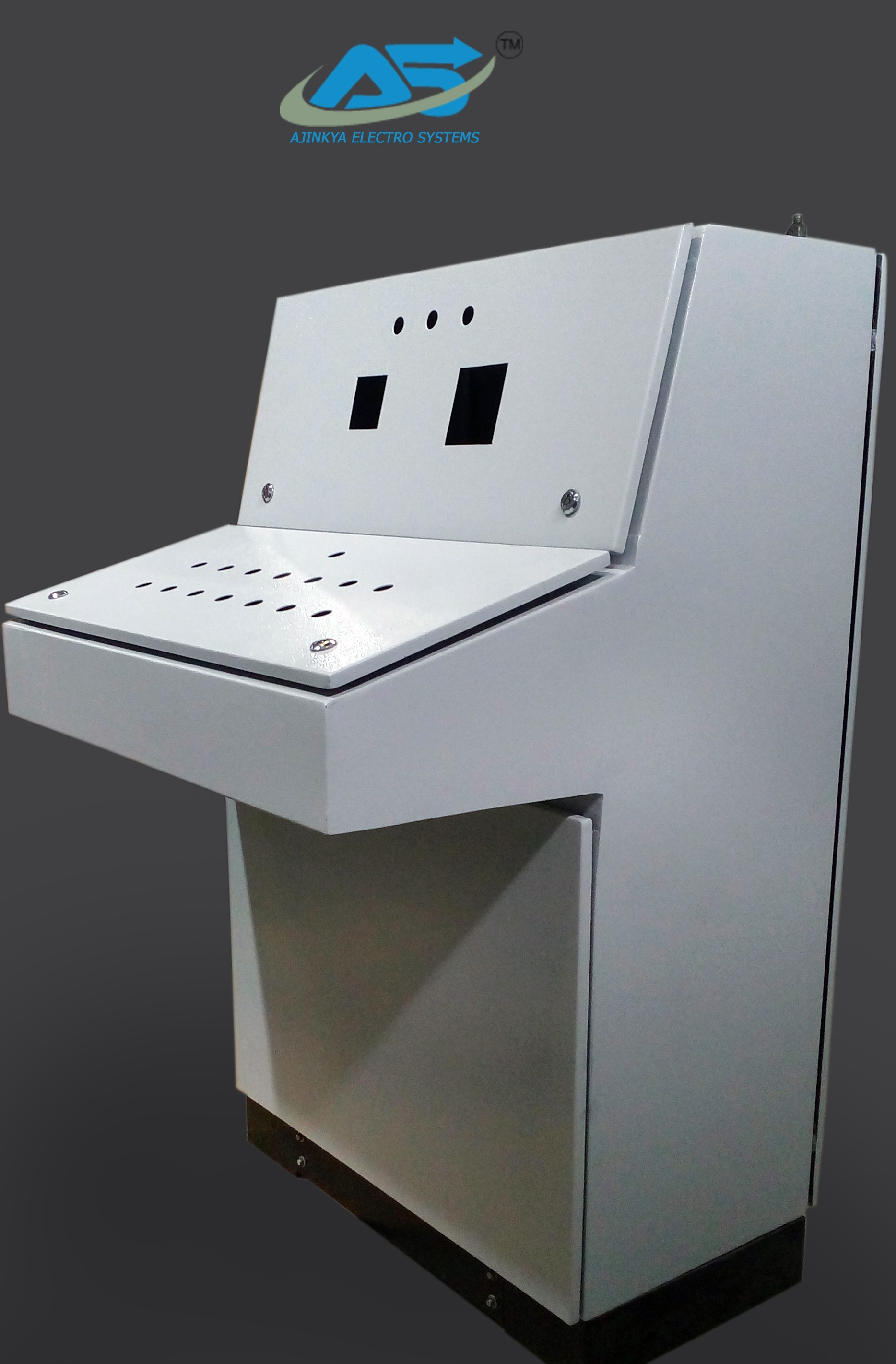

Control Desk Enclosure
Efficient Control and Protection: Control Desk Enclosures Designed with functionality in mind, our control desk enclosures feature a layout that optimizes accessibility and ease of use. They provide ample space for components, HMIs, and other necessary control equipment, allowing for seamless control and monitoring of electrical systems.
Technical Specifications:
Structure:
Welded with 1.6/2mm CRCA sheet.
Door & Covers:
Front or Rear doors as per the requirement in 2mm CRCA sheet with 135° opening.
Gland Plate:
At Bottom as per the requirement in 2mm CRCA sheet.
Mounting Plate:
Made with 2 / 2.5mm Galvanized sheet.
Powder Coating:
RAL 7035
Mounting Provision:
Base in a 3mm CRCA sheet.
Lifting Provision:
Eye bolts or Lifting brackets
Gasket:
PU gasket for superior & long lasting ingress
IP Rating:
Available up to IP54 protection.

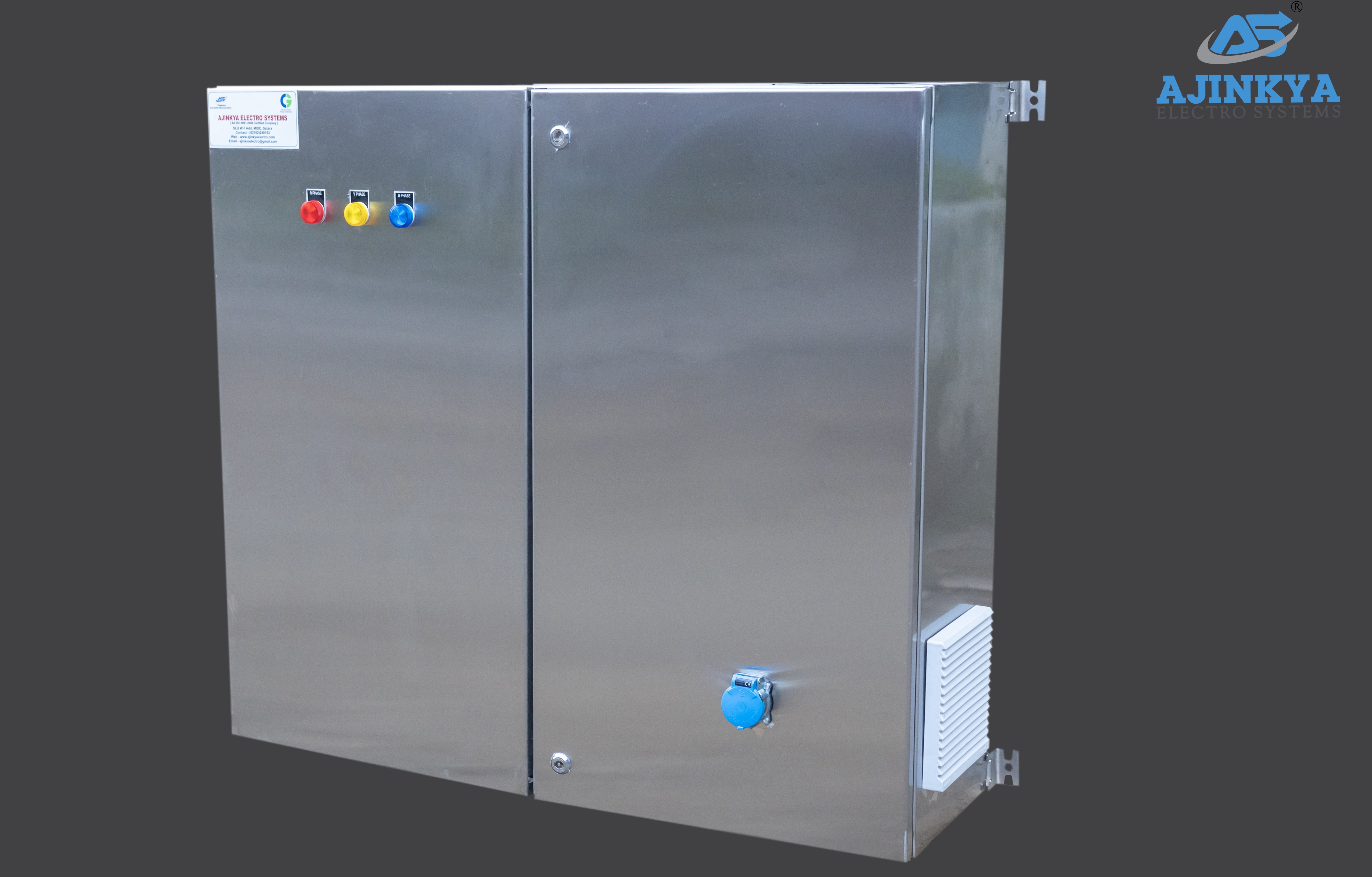

Stainless Steel Enclosure
Durable and Resilient: Stainless Steel Enclosures. These robust enclosures are built to withstand harsh environments and provide long-lasting protection for your valuable components. They are designed to withstand moisture, dust, and other environmental factors, providing a reliable defense against damage. Food and chemical processing plants require utmost safety and ability to withstand in the critical environment of chemicals, so stainless steel enclosures are the only option available for such industries.
Technical Specifications:
Welded Body:
Body fully welded with sides, rear, top & bottom in 1.6 / 2mm SS 304 sheet.
Door:
Single or Double door as per the requirement in 2mm SS 304 sheet with 150° opening.
Gland Plate:
At Top / Bottom as per the requirement in 2mm SS 304 sheet.
Mounting Plate:
Made with 2 / 2.5mm Galvanized sheet.
Finish:
Matt / Mirror.
Mounting Provision:
Wall mounting brackets / Base for Floor standing enclosure.
Gasket:
PU gasket for superior & long lasting ingress protection.
IP Rating:
Available up to IP54 protection.

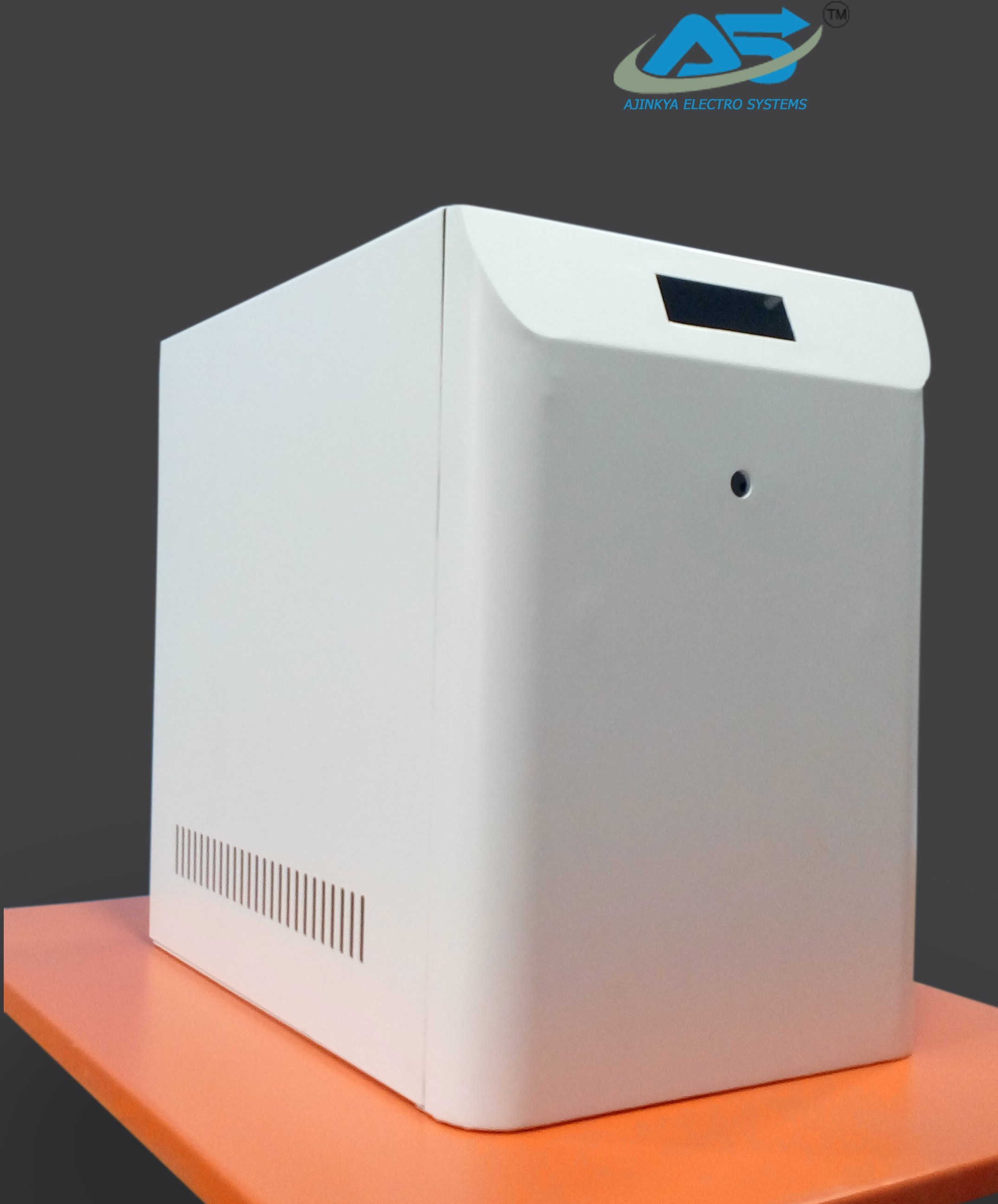

Customized Enclosure
Tailored to Your Specifications: Customized Electrical Enclosures. When standard enclosures don't meet your specific requirements, our customized electrical enclosures provide the perfect solution. These enclosures are designed and built to your exact specifications, ensuring a seamless fit for your unique electrical equipment and application. Solar inverter cabinets, UPS cabinets, Meter Panel / boxes, Junction boxes and so on are the examples customized enclosures.
